Project Description:
Dahshour Village:
** Gravity networks :
* UPVC pipelines 8",10",12" dia. 12136 m length + HDPE pipelines from 427 ,535, 859 mm dia. &1711 m length. & RC pipelines from 900mm with 520 m length.
** Pressurized pipelines :
* HDPE pipelines from 620/710 mm dia. & 2629 m length.+ P.S.R.C pipelines of 600 mm dia. &140m length t crossing.
** 2 Crossings :
* Open cut excavation type on El Lebbiny drain of 851/1000 mm dia. and 18 m length.
* Trenchless excavation type under El moheet drain (R.C culvert 1800 mm dia.) and length 110 m

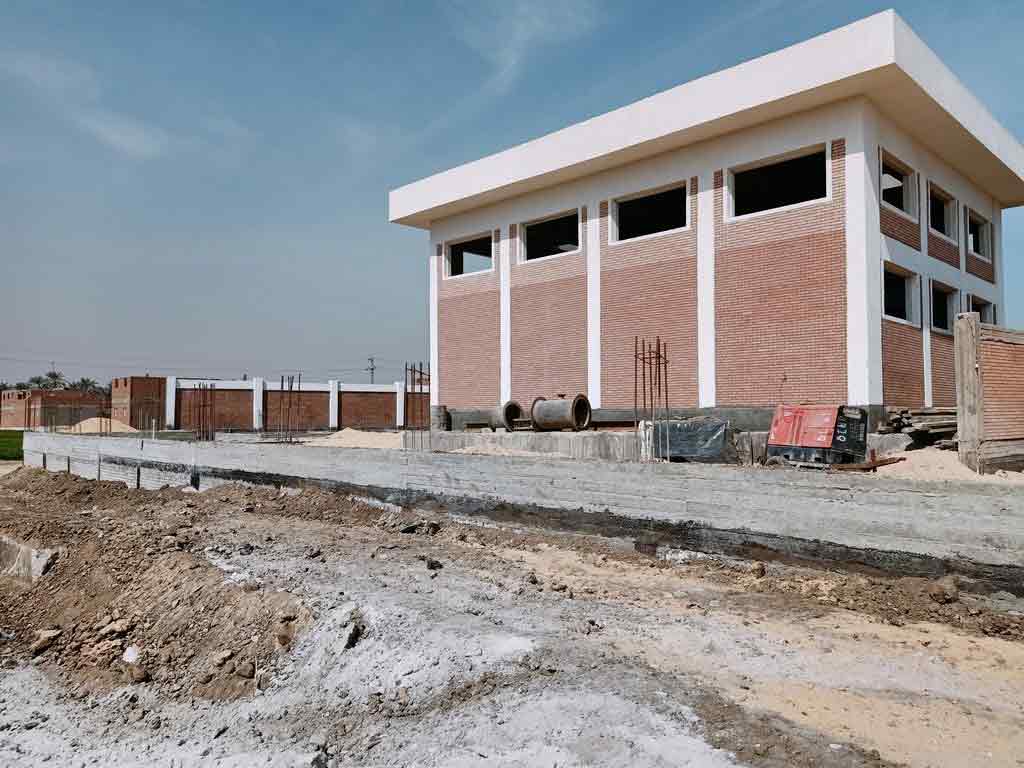

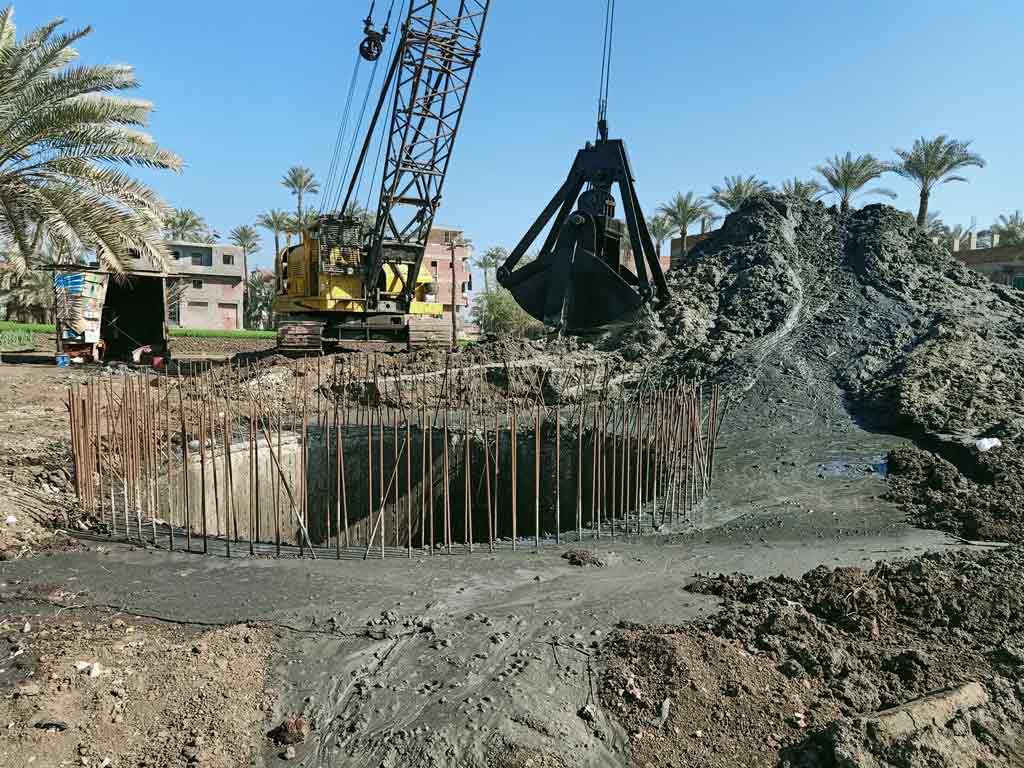

** Pump Station of dia 14 m height 20 m & discharge 300 L / sec
Sakkara Village:
** Gravity networks :
* UPVC pipelines 6",8",10",12" dia. 18559 m length + HDPE pipelines from 427,535,678,800,851 mm dia. & 4047 m length.
**2 Pressurized pipelines :
Main Sakkara Pressurized pipeline with R.C pipelines 800 mm dia and 2406 m length.
Secondry Sakkara Pressurized pipeline with HDPE pipelines 500 mm dia and 1200 m length.
** Crossings :
* Tunnel crossing to pass gravity line 900 mm dia. (R.C culvert 2250 mm dia.)
* Trenchless excavation to pass gravity line 560&800 mm dia.
**2 Pump Station
* Main sakara plant of dia 14 m height 20 m & discharge 400 L/sec
* Secondary sakara plant of dia 15m height 12 m and discharge 150 L / sec
Meet Raheena Village:
** Gravity networks :
* UPVC pipelines 6",8",10",12" dia. 18924 m length + HDPE pipelines from 427 ,535, 800 mm dia. 1750 m length.
** Pressurized pipelines :
* HDPE pipelines 400 mm dia. & 650 m length
** Pump Station of dia 12 m height 5 m & discharge 160 L / sec
